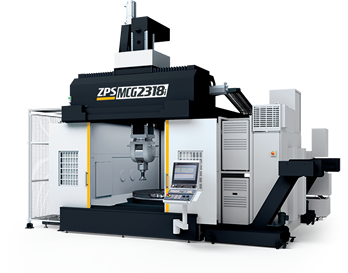

MCG2318i

The gantry-type machining centers are highly productive machines with a wide range of application when machining complicated spatial shapes in three or five axes. Due to high dynamics, very high rigidity and damping characteristics of the machine structure, they enable utilization of HSC technology advantages. The gantry-type machines have their spindle mounted in a motor spindle unit built-in in the sliding ram. All movements of the machine are realized by linear guide-ways with rollers. Measuring of position in the X, Y and Z axes is carried out directly by linear scales.

MCG2318i video

STANDARD EQUIPMENT

OPTIONAL EQUIPMENT

» Double-axis CNC head
» Spindle axis cooling with 5.5 MPa
»Spindle axis cooling with 7 MPa
» Workpiece probe
»Tool probe
»Fixed table 2520 × 1600 mm with 1500 mm integrated rotary table
»Tiltable rotary table
»Mist extractor
»External oil mist cooling
»Spindle axis oil mist cooling
»Manual rinsing nozzle
»Extended capacity tool magazine
»Remote diagnostics


 Work Table

Work area

2,520 x 1,600

mm

Maximum load

15,000

kg

Table surface to spindle nose distance

200

mm

T-slot size, span, number of slots

18 H7, 125

mm, 12 pcs

 Range of working travels

X axis

2,300

mm

Y axis

1,500

mm

Z axis

1,050

Mm

 Feeds in X, Y, Z axes

Rapid traverse

50

m/min

Max. working feed

50

m/min

Max. acceleration in axes

5

m/s²

 Spindle

Maximum speed

14,000

rpm

Max. power at S1 = 100% / S6 = 40%

25/37

kW

Max. torque at S1 = 100%

236

Nm

Rated speed

1,500

rpm

 Automatic tool changer

Clamping taper

HSK-A100

Tool maximum length

380/615

mm

Tool maximum diameter at fully occupied magazine

160

mm

Tool maximum weight

15

kg

Maximum number of tools

50

pcs

Tool interchange time

3,5

s

 Machine dimensions and weight

Height x width x length

6,635 x 6,100 x 4,710

mm

Weight without optional equipment

31,500

kg

 Control system

 Heidenhain i TNC530
