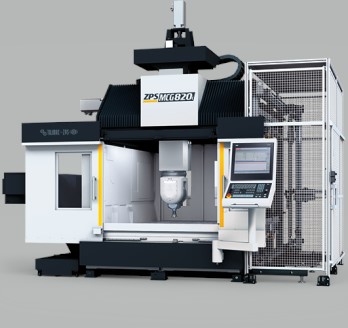

Machine standard version with three CNC controlled axes.
The machine is ideal for production of molds
in the forging, plastics, automotive and aeronautics industry with
particular focus on machining of complex 3D shapes, with
utilization of both three-axis and five-axis machining. In the
field of conventional production, the machine is capable of
milling, drilling, counterboring and reaming of holes, thread
cutting and thread milling with highly productive machining times.
Due to the high dynamics, high rigidity and damping capacity of
its construction, the machine enables full utilization of the
advantages of HSC technology.
The upper-gantry type portal, whose frame consists of two
sidewalls fastened to the base, forms the machine construction.
Secured to the base upper faces are linear guideways for the cross
rail travel, the Y-axis driving ballscrew and linear feedback
scale. One face of the cross contains the guideways for the
travel of the protruding cross slide in the X-axis, in the middle
of the face is the ball screw for driving the Z-axis, having the
minimum overhang to increase rigidity.
Two pairs of carriages of linear guideways are fastened inside the
cross slide for the sliding ram for the Z-axis.
|
|
|
|
|
STANDARD EQUIPMENT
|
OPTIONAL EQUIPMENT |
»
HEIDENHAIN control system
» Digital
drives
» HEIDENHAIN
scales on all axes
» Spindle
thermal stabilization
» Automatic
tool holder blow off system
» Tool
outer cooling (flood coolant)
» Completely
covered work enclosure with possibility
of workpiece loading from
above
» Chip
conveyor with integrated coolant tank
» Rack-type
tool magazine, 40 tool capacity
» Work
cycle end signaling |
» Coolant through spindle
» Cooling with minimum
quantity of lubricant
» Rotary table
» Tool measuring probe
» Workpiece measuring
probe
» Two-axis
CNC head
» Turning
capability
» Increased
spindle speeds / power for machining of aluminium
alloys
|
|
Work Table |
|
Work area |
1000 |
mm |
|
Maximum load |
600 |
kg |
|
Table surface to spindle nose distance (3 axis) |
50 |
mm |
|
T-slot size, span, number of slots |
|
|
|
Maximum machined dimensions |
1000x400 |
mm |
|
Range of working travels |
|
X axis |
1 200 |
mm |
|
Y axis |
1 000 |
mm |
|
Z axis |
700 |
Mm |
|
Feeds in X, Y, Z axes |
|
Rapid traverse |
60 |
m/min |
|
Max. working feed |
60 |
m/min |
|
Max. acceleration in axes |
5 |
m/s2 |
Spindle |
|
Maximum speed |
18,000 |
rpm |
Max. power at S1 = 100% / S6 = 40% |
25/31 |
kW |
Max. torque at S1 = 100% |
160/200 |
Nm |
Rated speed |
3 000 |
rpm |
Automatic tool changer |
Clamping taper |
HSK-A63 |
|
Tool maximum length |
250 |
mm |
Tool maximum diameter at fully occupied magazine |
80 |
mm |
Tool maximum diameter without adjacent tools |
110 |
mm |
Tool maximum weight |
6,5 |
kg |
Maximum number of tools |
30 |
pcs |
Tool interchange time |
3,5 |
s |
|
Control
system |
Heidenhain i TNC530 |
PDF
- specifications |
|
|
