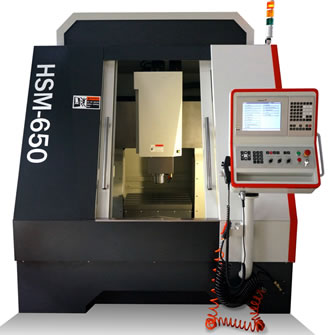

 HSM-650 High Speed Vertical Machining Center




The ZPS-CNC USA HSM-650 is a compact high-speed vertical machining center machine built in the modern design of linear guideways, wide stable base castings and high speed spindle. This design is ideal for producing high speed, high accuracy parts at a very low cost of ownership.

The HSM-650 machine comes equipped with DynaPath WinDelta Control offering high speed contouring features such as program look-ahead, path smoothing, and vibration control, all designed specifically for a high quality surface finish and allm STANDARD FEATURES. 12" Color LCD, Yaskawa AC Servo System, Full Enclosure, Cartridge Type 25,000 rpm Spindle with Chiller, 12 Tool Armless Type Toolchanger (BT30), Electronic Handwheel, Ethernet, USB, 4Gig+ Part Program Storage, and Remote monitoring... Maximizing the chip-cutting value.




  STANDARD  EQUIPMENT

 » DynaPath WinDelta CNC control
 » 12" color LCD
 » Yaskawa axis motor and drives
 » Central lubrication system
 » Coolant unit
 » 12 Tool Armless ATC
 » 24,000 rpm spindle
 » High speed machining
 » Electronic handwheel
 » Maximum part program storage
 » Ethernet or USB for program transfer
 » Front-mounted air gun
 » Front-mounted coolant gun
 » Compact footprint
 » Screw-type chip auger sysem

  OPTIONAL EQUIPMENT

 » Tool Setting probe
 » Part Probe
 » Graphite package
 » Dust and mist removal systems
 » Various rotary table and indexers
 » More on request
 »
 »

 Machine specifications HSM650.pdf

High Speed Cutting Video
