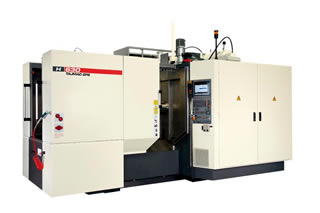

   H 630i Horizontal Machining Center



Efficient and highly productive universal machine with broad  use for variable production needs. Equipped with two 630mm pallets, automatic pallet changer and rotary table.
The machine’s purpose is complex multi
-side high speed, high efficiency machining of customer's workpieces .

» High dynamic and thermal stability
»
Max. workpiece dimensions 750 x 800 mm
» 8,000 rpm spindle standard, options to 18,000
» Basic movements executed by :
    rotary table - Z axis
    column  - X axis
    spindle headstock  - Y axis
»
Oversized linear ways in all axes


STANDARD VERSION

» SINUMERIK 840D or Heidenhain control system
» SIEMENS / Heidenhain digital drives
»
Linear scales on all axes (B axis rotary feedback)
»
360° contouring rotary table
» APC, 2 pallets 630x630 mm
» Automatic tool changer, 56 tool pockets
» 8,000 rpm spindle
» 40hp, 337 lb/ft torque standard
» Planetary two-speed range gearbox
» CAT50/SK50 clamping taper
» Automatic pallet changer
» Tool outer cooling
»
Tool holder automatic air blow
» Worm-type chip conveyors
   and steelbelt chip conveyor




OPTIONS

» Electrospindle 14,000 rpm, HSK-A100, 50hp, 174lb/ft
» Electrospindle 18,000 rpm, HSK-A63, 41hp, 115lb/ft
» Coolant through spindle axis (liquid)
» Air coolant through spindle axis
» Tool cooling with oil mist
» Automatic tool changer with capacity of 96
   or 246 tools

» Workpiece measuring probe
» Tool checking probe
» Additional pallets
» Work zone wash (manual or automatic)
» Chip bucket (300 kg)
» BIG-PLUS spindle
»
Mist collector
» Machine 5-axis version
» Rotary table with torque motor
» HEIDENHAIN control system
» FANUC control system



PDF - Brochure
