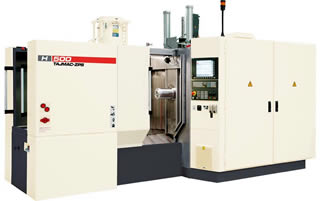

   H 500 Horizontal Machining Center



Efficient and highly productive universal machine with broad  use for variable production needs. Equipped with two 500mm pallets, automatic pallet changer and rotary table
The machine’s purpose is complex multi
-side high speed, high efficiency machining of customer's workpieces .

» High dynamic and thermal stability
»
Max. workpiece dimensions 600 x 750 mm
» 10,000 rpm spindle standard, options to 18,000
» Basic movements executed by :
    rotary table - Z axis
    column  - X axis
    spindle headstock  - Y axis
»
Oversized linear ways in all axes


STANDARD VERSION

» SINUMERIK 840D or Heidenhain control
» SIEMENS /Heidenhain digital drives
» 360° contouring rotary table
» Linear scales on all axes (B axis rotary feedback)
» APC, 2 pallets 500x500 mm
» Cooling unit with tool coolant system
»
Tool holder automatic air blow
»
Worm swarf conveyor
» Swarf pan




OPTIONS

» Additional contouring axis, 5 axis version
» Indirect, encoder feedback
» Through - spindle tool liquid coolant
» Through – spindle tool air coolant
» Through – spindle cooling unit with filtration
» 75 tool ATC
» CAT 40, BT 40, HSK-A63 taper
» Workpiece probe
» Tool probe
» Workspace rinse wash (top, bottom)
» Belt swarf conveyor
» Swarf pan (300 kg)
» FANUC control, motor, drive package
