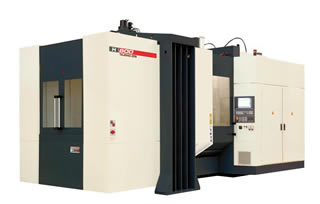

   H 800i Horizontal Machining Center

Classic version of the horizontal machining center with rotary table and automatic pallet changer for complex, powerful, and accurate machining of  box shaped and flat pieces with max. dimensions of 1100x1300 mm(43.3" x 51.2")
Maximum pallet load
5,500 lb

This is a full four axis machining center, not cheap a
1-degree unit like the competition.

The machine concept includes the T-shape bed with sliding column (X-axis) where the spindle head move in the vertical direction (Y-axis). The motion of the Z-axis is carried out by the rotary table (B-axis) with a workpiece. Pallet changer is designed not to load the machine chassis and increase accuracy and longievity.

H800i FIVE AXIS is the five-axis model with 2-axis tilting CNC table and coordinate system type tool changer.

Spindle drive with planetary gearbox provides maximum usable power 28/43 kW (37/57 hp)
with maximum speed of
8,000 rpm.
Torque 342/526Nm (252/388 ft-lb)
Digital AC feed servo
drives,
Linear roller ways in all all axes.
Machine is equipped with automatic tool changer with 56 tool capacity.

Automatic pallet changer considerably increases labor productivity, enables workpiece clamping, releasing and gauging on the pallet outside the machining space during automatic cycle.





STANDARD FEATURES

» SINUMERIK 840D or Heidenhain control
» SIEMENS /Heidenhain digital drives
»
Planetary gearbox
» Automatic pallet changer
» Heidenhain linear scales
» NC rotary table with pallet- B-axis
» Automatic tool changer, 56tool pockets
» Spindle taper CAT/ISO50
» Coolant unit with tool cooling system
» Through spindle cooling with coolant or air
» Through spindle coolant unit with filtration unit
» Hydraulic power unit
» Swarf conveyor system
»
Electronic thermal compensation



OPTIONS

» Spindle taper ISO 40, CAT 40, BT 40
                       CAT 50, BT 50
» Tilting rotary table (FIVE AXIS)
» Tool setting probe
» Workpiece measuring probe
» Work zone upper and lower wash-out

» Hydraulics to pallet
» FANUC control, motor, drive package

» 4500rpm high-torque option (970 ft-lb)
» Electrospindle 14,000 rpm, HSK-A100, 50hp, 174lb/ft
» Electrospindle 18,000 rpm, HSK-A63, 41hp, 115lb/ft
